2G GSM mini controller

New World Security

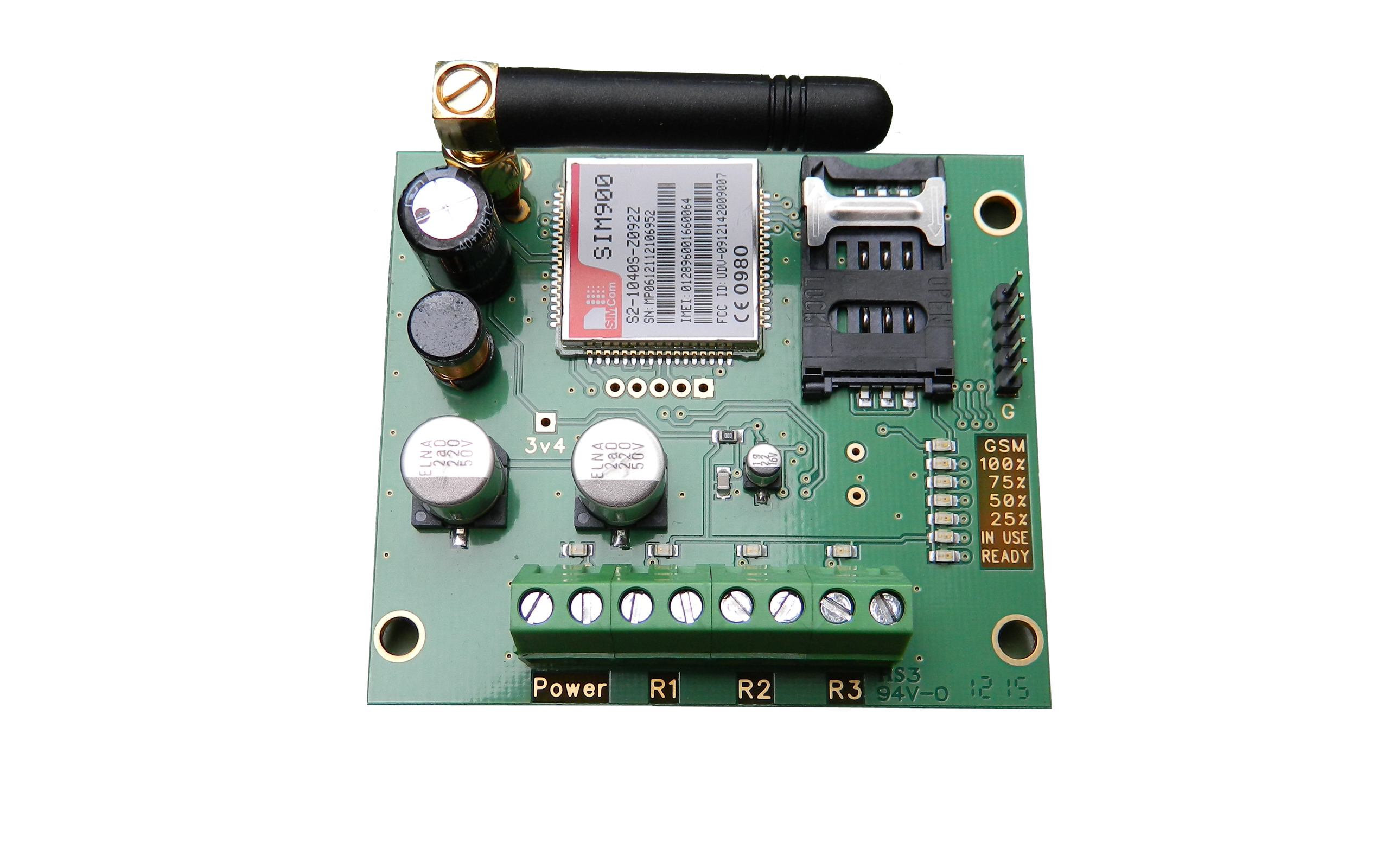

GSMx31-3L pcb
  • Description
  • More
  • Specifications

Simple Installation and setup without PC

   GSM Mini controller model: GSM -x31-3L with 3 relay outputs to control the appliances using SMS or short Call.
If user mobile number is recognized in, the controller address book relay is being triggered.

End-users are able to control externally connected devices via mobile phones

 FREE of CHARGE!



FEATURES

  • Simple Installation
  • Easy remote programming by SMS
  • Address Book- 50 numbers
  • ADD or DELETE Users remotely by text SMS
  • Relay output Timer from 1sec – 9999sec
  • Each User can control individually relay output
  • Only preprogrammed numbers can get access
  • Network Level control
  • Work from anywhere in the world
  • QUAD-BAND System
  • 2G GSM Network
  • Controller can work with any 12-24V AC/DC power
  • Small PCB dimensions allow install controller in to any equipment enclosures



Mini GSM controller can be used:

  •  Parking entrance control       Entrance barriers and garage doors
  • Pumps, valves switching       Home heating boiler control
  • Computer, router, server remote restarting



  User manual



 Brochures




Video User manual



Specification
  • Administrators 1
  • Users database up to 250
  • Power supply 12-24 VAC/DC 50 Hz ~ 200 mA max
  • Current consumption in idle state w/o external devices connected up to 50mA
  • GSM frequency  2G only 850/900/1800/1900MHz
  • Number of outputs - 3
  • Output type Relay Maximum commuting output values 24V 50Hz ~ 0,5A / 24V 1A
  • Dimensions 75×65×20 mm
  • Operating temperature range -20…+55 °C
